Aircond Piping, Drainage and Wiring: What a Proper Install Includes

The Hidden Work Decides How Long Your Aircond Lasts

When people compare aircond installations, they look at the unit on the wall. The part that actually decides whether you call a repair technician in year two or year twelve is the work you cannot see: the copper piping, the insulation, the drainage and the wiring.

A premium unit fitted with cheap connection materials fails like a cheap unit. Getting the aircond installation piping right is not optional detail, it is the foundation. Our aircond installation service treats these components as the priority, not the afterthought.

Copper Piping Built for R32 Pressure

Copper piping carries refrigerant between the indoor and outdoor units. Almost every new aircond sold in Malaysia now runs on R32, which operates at noticeably higher pressure than the older R22 standard.

That pressure is why pipe wall thickness matters. Daikin and Panasonic guidelines call for a minimum copper thickness of 0.61mm, or 22 SWG, to safely handle R32. Thin, inferior piping develops microscopic stress cracks under that load. You will not notice a sudden leak. Cooling just degrades over the months while the power bill creeps up. Insisting on correctly rated copper from day one removes that slow failure entirely.

Installation quality lasts

The visible part of an install is the unit on your wall. The invisible part, piping, drainage and wiring, is what determines whether the system runs quietly for a decade or starts failing within a year.

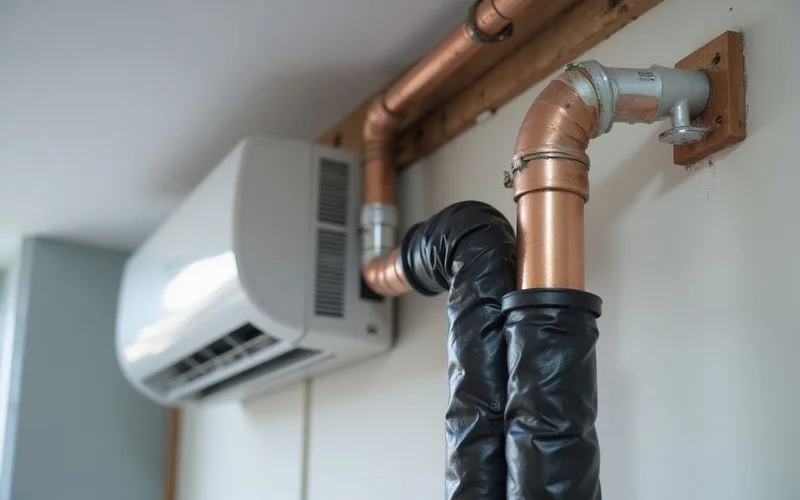

Insulation That Survives Kinta Valley Humidity

Insulation is where Ipoh’s climate makes the case for itself. With humidity sitting near 84 percent year-round, an under-insulated copper line will sweat constantly, and that condensation drips onto plaster ceilings and feeds mould.

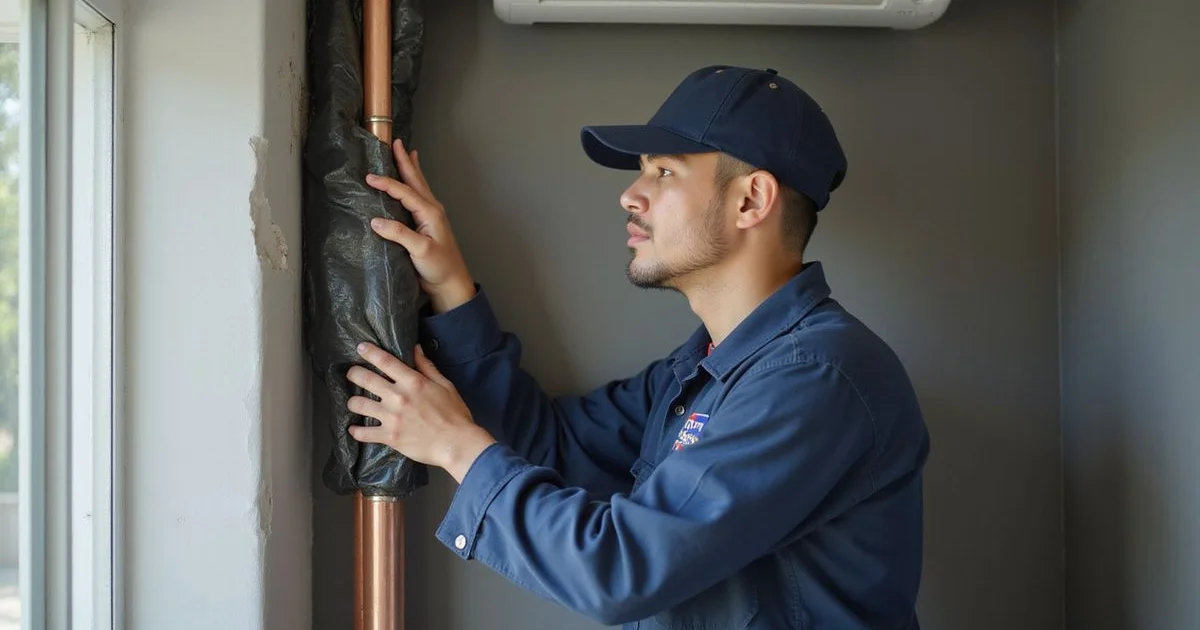

Armaflex insulation wraps the cold copper line to stop the surface sweating. Budget contractors often use thin 9mm foam to trim costs. We replace it with denser 13mm Class O nitrile rubber, applied snugly along the whole run with no exposed gaps at the joints. Outdoor sections are covered with PVC trunking so sunlight does not rot the foam. In a humid valley like Kinta, this is the difference between a dry ceiling and a recurring water stain.

Drainage With the Right Fall

PVC drainage carries condensate water safely outside, usually into a bathroom floor trap or an external drain. A reliable setup follows a few non-negotiable rules.

Ignore these and the pipe eventually clogs. A poorly pitched drain is the single most common reason a homeowner calls about an indoor unit spitting water across a room.

Wiring You Cannot Guess

Wiring connects the aircond to your distribution board, and it carries a heavy, continuous load. The Energy Commission, Suruhanjaya Tenaga, requires a dedicated 3-core 2.5mm² PVC cable for standard 1.0HP to 1.5HP household units. Undersized cable runs hot, the casing softens, and bare live wires can end up exposed in the roof space.

Every aircond also needs its own Miniature Circuit Breaker. We match the breaker to the unit, typically a 15A or 20A switch. Sharing the connection with a lighting or socket ring overloads the circuit and trips your power. Our technicians read the data plate on your specific unit to calculate the exact current draw, so nothing is left to guesswork.

For a walkthrough of how the full job runs on the day, read what to expect during installation. Keeping the new system clean afterwards is just as important, so plan for routine aircond chemical wash and prompt aircond repair when needed.

Getting the piping, insulation, drainage and wiring right the first time is what saves you money later. If you are planning an installation anywhere across Ipoh, request an installation quote and our senior assessors will review your exact layout and give you a fixed price before any work begins.
